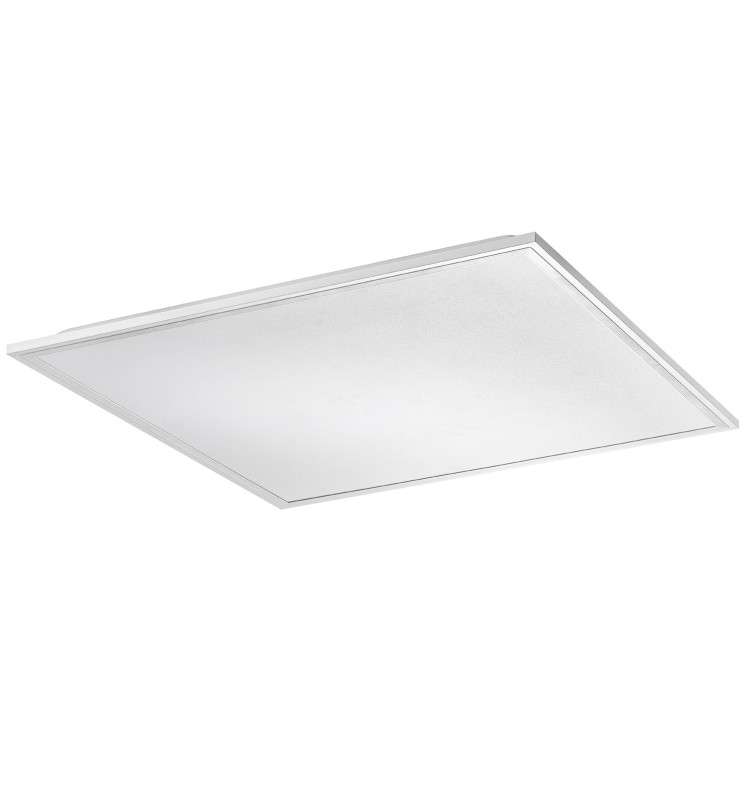

TF063-PANEL ECOPLUS-600x600-36W-3000K

Data sheet

Yes

IP

IP20, IP40 front

IRC

>80

Dimmable

Non

IK

IK04

Energy efficiency class

D

Warranty (years)

3

Total power (W)

36

Electric class

III, II with power supply

Power factor

>0.95

Rated voltage

230V

Light beam spread (°)

120

Luminous flux (lm)

3300

Color temperature

3000K

Safety group (EN62778)

RG0

Unified Glare Rating (UGR)

< 19

Driver included

Yes

Including the light source

Yes

Light source type

SMD

Tiltable

Non

Length (mm)

595

Width (mm)

595

Height (mm)

32

Weight (kg)

1.74

Product color

White

Use temperature range

-20°... +45°C

Connection type

Connecteur rapide avec repiquage

IP (value)

40, 20

Body materials

Aluminium

Diffuser materials

PMMA

Life span duration

L70 à 25° : 50 000 h

Recoverable

Insulation material except driver

Network frequency

50Hz, 60Hz

Initial SDCM

SDCM< 4

Max. lamp per B10A circuit breaker

20

Max. lamp per B16A circuit breaker

33

Max. lamp per C16A circuit breaker

56
