PANEL TECH IP65 FRONT-600X600-3CCT-3 POWER
  • PANEL TECH IP65 FRONT-600X600-3CCT-3 POWER

PANEL TECH IP65 FRONT-600X600-3CCT-3 POWER

BL04365402

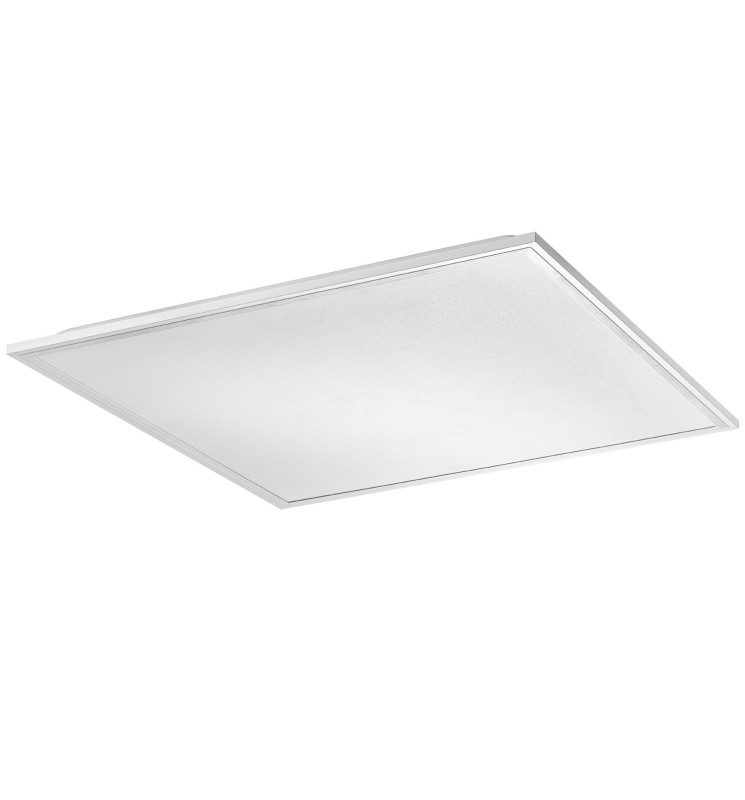

LED panel with 3 temperature colors and IP65 front. Driver adjustable in power: 30W (3600lm), 36W (4150lm) and 40W (4600lm) for 4000K
Ideal for clean rooms, playground, locker room.
BL04365402
BE-LED

Data sheet

Yes
Yes
IP
IP65 facade, IP20
IRC
>80
Dimmable
Non
IK
IK04
Energy efficiency class
D
Warranty (years)
5
Total power (W)
30 / 36 / 40
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
110
Luminous flux (lm)
4600, 4200, 4150
Color temperature
4000K, 3000K, 6000K
Safety group (EN62778)
RG0
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
32
Weight (kg)
1.7
Product color
White
Use temperature range
-25°... +45°C
Connection type
Box with fast connector (L-N)
IP (value)
20, 65
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Recoverable
Insulation material except driver
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
