PANEL SURFACE MOUNTED 600X600-3CCT-3P-IP65 FRONT
BL04365401

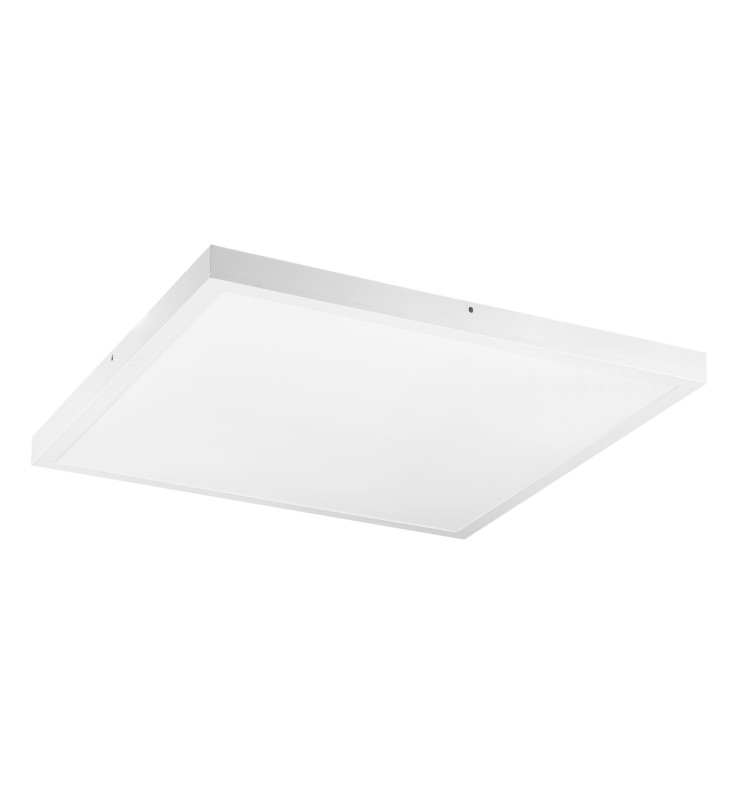

Projecting led panel. To be installed directly on the ceiling without using an additional frame. 3 temperature colors and 3 powers! 9 products in 1!
BL04365401
Data sheet
- Yes
- Yes
- IP
- IP65 facade, IP20
- IRC
- >80
- Dimmable
- Non
- IK
- IK04
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 30 / 36 / 42
- Electric class
- III, II with power supply
- Power factor
- >0.9
- Rated voltage
- 230V
- Light beam spread (°)
- 120
- Luminous flux (lm)
- 4600, 4200
- Color temperature
- 4000K, 3000K, 6000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19*
- Driver included
- Yes
- Including the light source
- Yes
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 50
- Weight (kg)
- 2.18
- Product color
- White
- Connection type
- Bornier avec repiquage
- IP (value)
- 20, 65
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80 à 25° : 50 000 h
- Recoverable
- Non recouvrable
- Network frequency
- 50Hz
- Initial SDCM
- SDCM< 4
