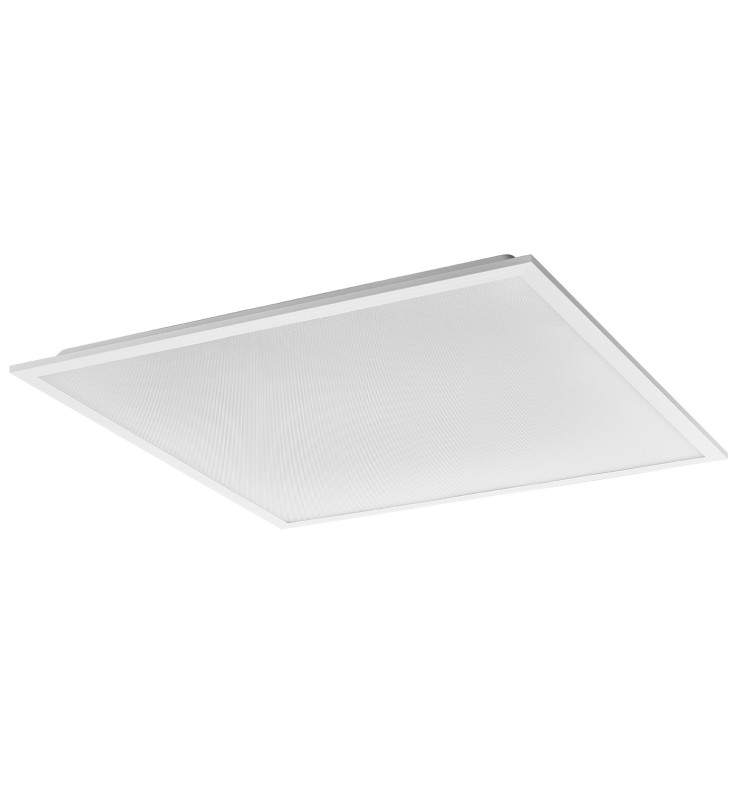

PANEL 675x675-36W-4000K-WHITE-UGR19-DETECT
  • PANEL 675x675-36W-4000K-WHITE-UGR19-DETECT
  • PANEL 675x675-36W-4000K-WHITE-UGR19-DETECT
  • PANEL 675x675-36W-4000K-WHITE-UGR19-DETECT
  • PANEL 675x675-36W-4000K-WHITE-UGR19-DETECT
  • PANEL 675x675-36W-4000K-WHITE-UGR19-DETECT

PANEL 675x675-36W-4000K-WHITE-UGR19-DETECT

BL04362009
Led panel UGR 19 with prismatic diffuser, safety rope and connection terminal block transplantable without tools, LGP in PMMA guaranteed for 5 years.
Presence IR detector + programmable brightness with remote control
BL04362009
BE-LED

Data sheet

IP
IP20, IP40 front
IRC
>80
Dimmable
Yes
IK
IK06
Energy efficiency class
E
Warranty (years)
5
Total power (W)
36
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
90
Luminous flux (lm)
3600
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
670
Width (mm)
670
Height (mm)
26
Weight (kg)
2.14
Product color
White
Use temperature range
-20°... +45°C
Connection type
Bornier avec repiquage
IP (value)
40, 20
Body materials
Aluminium, PMMA
Diffuser materials
PS
Life span duration
L80B10 : 50 000 h

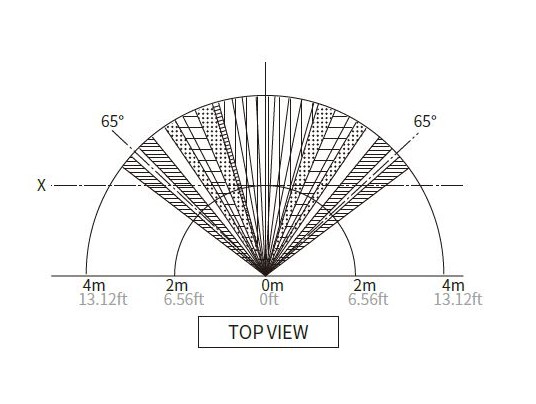

Detector
Infra rouge
Recoverable
Insulation material except driver
Dimmable values

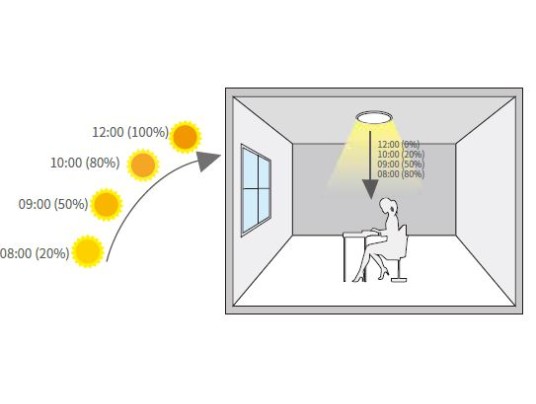

yes with sensor accessory, Daylight sensor
Network frequency
50Hz
Initial SDCM
SDCM< 3
Max. lamp per B10A circuit breaker
33
Max. lamp per B16A circuit breaker
52
Max. lamp per C16A circuit breaker
52
