TF108-PANEL PRO PRISM UGR19-300X1200-30W-4000K LOOP-IN LOOP-OUT
  • TF108-PANEL PRO PRISM UGR19-300X1200-30W-4000K LOOP-IN LOOP-OUT
  • TF108-PANEL PRO PRISM UGR19-300X1200-30W-4000K LOOP-IN LOOP-OUT
  • TF108-PANEL PRO PRISM UGR19-300X1200-30W-4000K LOOP-IN LOOP-OUT

TF108-PANEL PRO PRISM UGR19-300X1200-30W-4000K LOOP-IN LOOP-OUT

BL04302003

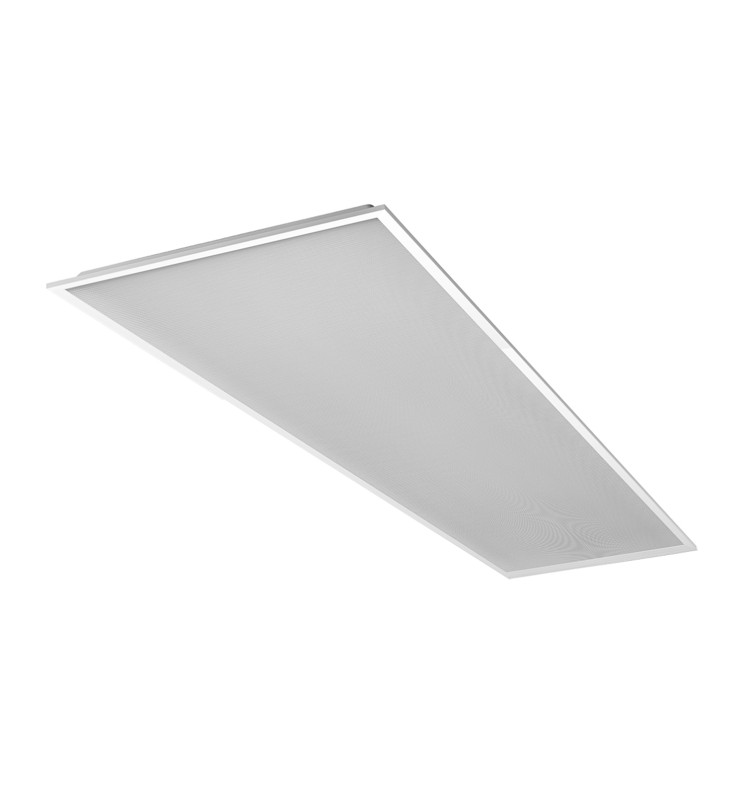

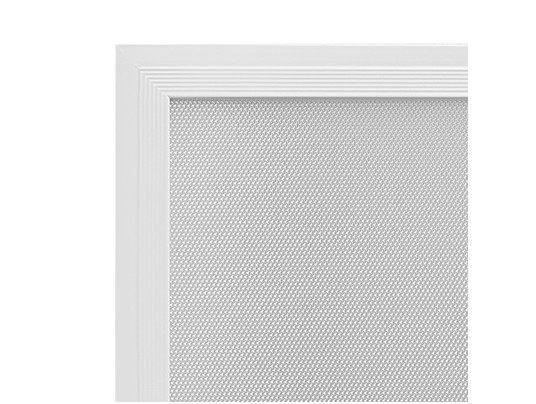

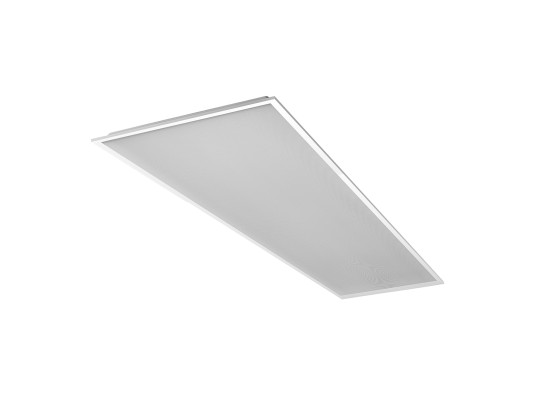

Led panel UGR<19 300x1200 with prismatic diffuser, with safety rope and connection terminal block that can be transplanted without tools, PMMA lens.
BL04302003
BE-LED

Data sheet

Yes
IP
IP20
IRC
>80
Dimmable
Non
IK
IK04
Energy efficiency class
E
Warranty (years)
5
Total power (W)
30
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
90
Luminous flux (lm)
3700
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
1195
Width (mm)
295
Height (mm)
34
Weight (kg)
2
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box with fast connector (L-N)
IP (value)
20
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Recessed depth under BA13 (mm)
30
Recoverable
Insulation material except driver
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
Max. lamp per B10A circuit breaker
10
Max. lamp per B16A circuit breaker
15
Max. lamp per C16A circuit breaker
25
