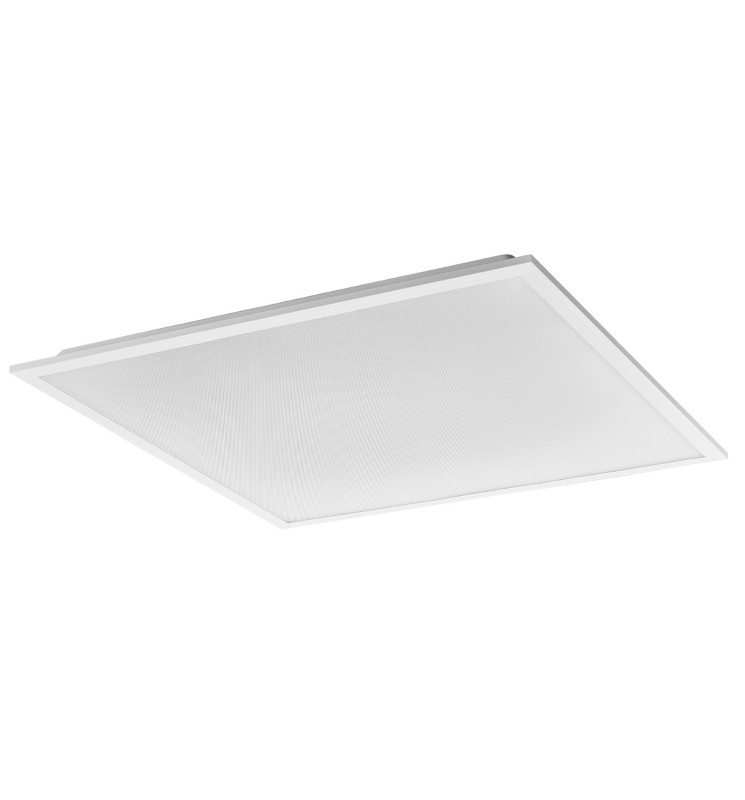

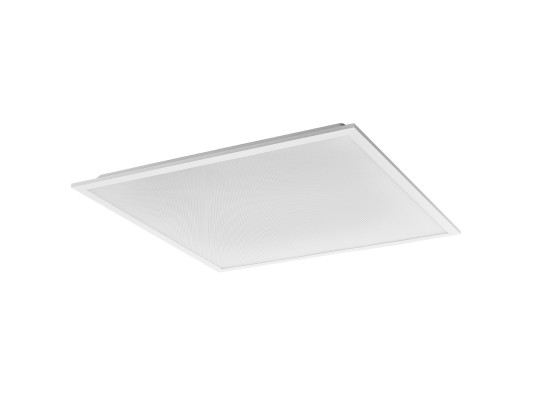

TF090-PANEL ECO UGR 19-600x600-30W-4000K-PRISM BACKLIT LOOP-IN LOOP-OUT
  • TF090-PANEL ECO UGR 19-600x600-30W-4000K-PRISM BACKLIT LOOP-IN LOOP-OUT
  • TF090-PANEL ECO UGR 19-600x600-30W-4000K-PRISM BACKLIT LOOP-IN LOOP-OUT

TF090-PANEL ECO UGR 19-600x600-30W-4000K-PRISM BACKLIT LOOP-IN LOOP-OUT

BL04362004

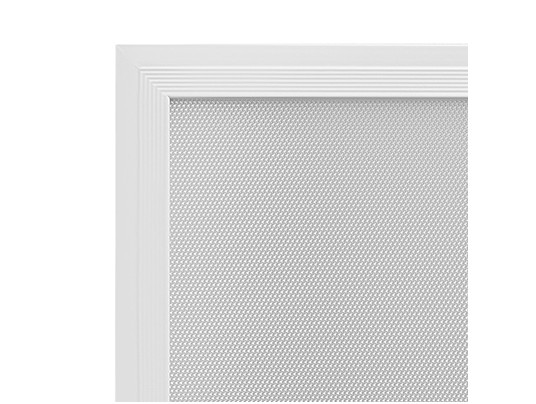

Led panel UGR<19 with prismatic diffuser, with safety rope and connection terminal block that can be transplanted without tools, PMMA lens.
BL04362004
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>85
Dimmable
Non
IK
IK04
Energy efficiency class
D
Warranty (years)
5
Total power (W)
30
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
90
Luminous flux (lm)
3400
Color temperature
4000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
34
Weight (kg)
2.04
Min. recessed diameter (mm)
600
Max. recessed diameter (mm)
600
Recessed diameter
600
Product color
White
Use temperature range
-20°... +45°C
Connection type
Box with fast connector (L-N)
IP (value)
20
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Recessed depth under BA13 (mm)
20
Recoverable
Insulation material except driver
Network frequency
50Hz, 60Hz
Initial SDCM
SDCM< 4
Max. lamp per B10A circuit breaker
10
Max. lamp per B16A circuit breaker
15
Max. lamp per C16A circuit breaker
25
