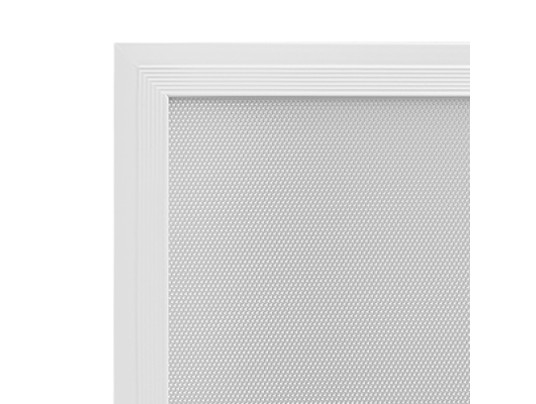

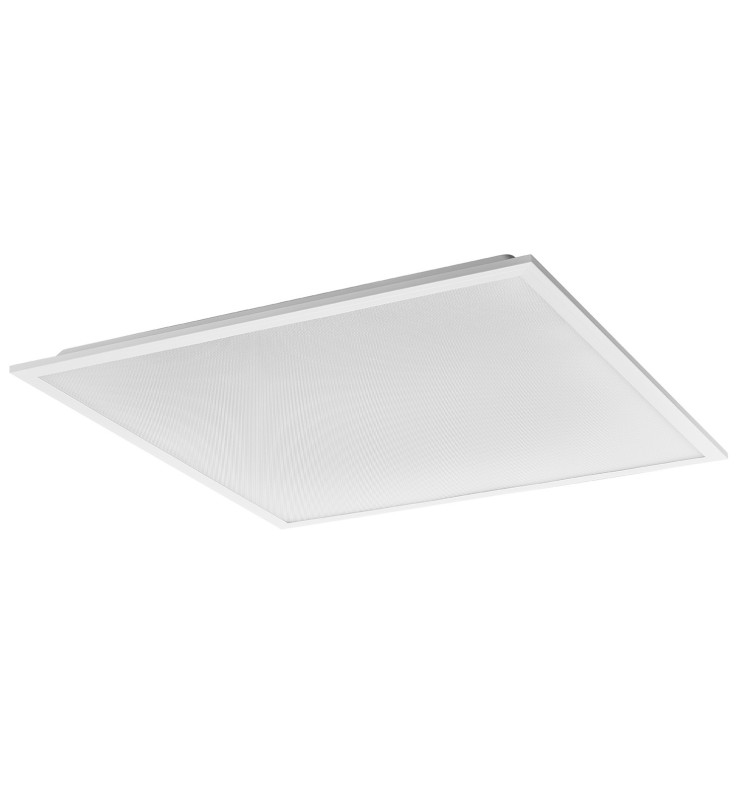

TF106 - PANEL V UGR19-PRISM WORKSITE X6 PCS MIN-600X600-30W-4000K
BL04302001

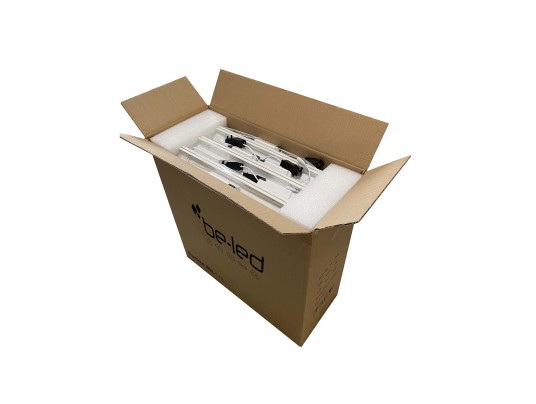

X6 packaging, designed for your construction sites. Led panel UGR<19 with prismatic diffuser, safety rope and connection terminal block that can be tran
Anti-flicker driver compliant with new regulations.
Anti-flicker driver compliant with new regulations.
BL04302001
Data sheet
- Yes
- Yes
- IP
- IP40 (excl. driver)
- IRC
- >85
- Dimmable
- Non
- IK
- IK04
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 30
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 3400
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Light source type
- SMD
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 34
- Weight (kg)
- 1.72
- Min. recessed diameter (mm)
- 600
- Max. recessed diameter (mm)
- 600
- Recessed diameter
- 600
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- Box with fast connector (L-N)
- IP (value)
- 40.
- Body materials
- Aluminium
- Diffuser materials
- PC
- Life span duration
- L80B20 à 25° : 50 000 h
- Recessed depth under BA13 (mm)
- 20
- Recoverable
- Insulation material except driver
- Network frequency
- 50Hz, 60Hz
- Initial SDCM
- SDCM< 4
- Max. lamp per B10A circuit breaker
- 12
- Max. lamp per B16A circuit breaker
- 20
- Max. lamp per C16A circuit breaker
- 30
X6 packaging, designed for your construction sites. Led panel UGR<19 with prismatic diffuser, safety rope and connection terminal block that can be tran
Anti-flicker driver compliant with new regulations.
Anti-flicker driver compliant with new regulations.
