PANEL V WORKSITE UGR19 PRISM DALI PUSH DIM X6 MIN 30W 4000K 3600lm
BL04302006

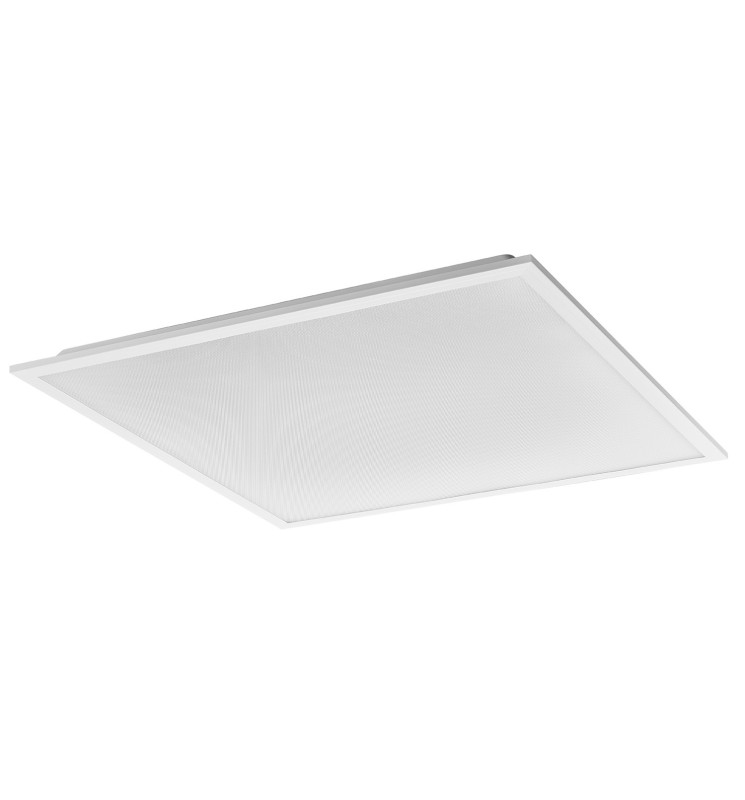

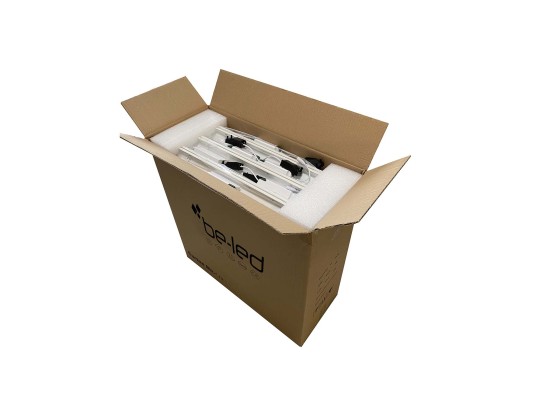

LED panels packaged by 6 in construction kit. Save time, money and contribute to the environment. Dali and Push Dim version with prismatic diffuser.
BL04302006
Data sheet
- Yes
- Yes
- IP
- IP20
- IRC
- >85
- Dimmable
- Yes
- IK
- IK04
- Energy efficiency class
- D
- Warranty (years)
- 5
- Total power (W)
- 30
- Electric class
- III, II with power supply
- Power factor
- >0.95
- Rated voltage
- 230V
- Light beam spread (°)
- 90
- Luminous flux (lm)
- 3400
- Color temperature
- 4000K
- Safety group (EN62778)
- RG0
- Unified Glare Rating (UGR)
- < 19
- Driver included
- Yes
- Including the light source
- Yes
- Tiltable
- Non
- Length (mm)
- 595
- Width (mm)
- 595
- Height (mm)
- 30
- Weight (kg)
- 1.92
- Product color
- White
- Use temperature range
- -20°... +45°C
- Connection type
- fast connector
- IP (value)
- 20
- Body materials
- Iron
- Diffuser materials
- PS
- Life span duration
- L80 à 25° : 50 000 h
- Cable length
- 20 cm
- Recoverable
- Insulation material except driver
- Dimmable values
- Dali, push dim
- Network frequency
- 60Hz, 50Hz
- Initial SDCM
- SDCM< 4
