• Rupture de stock

PANEL TECH-600X600-3CCT

BL04302007

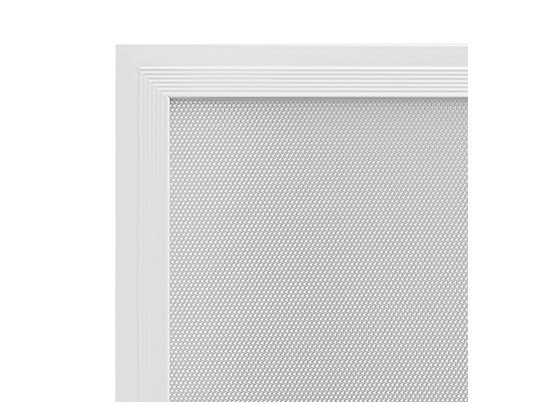

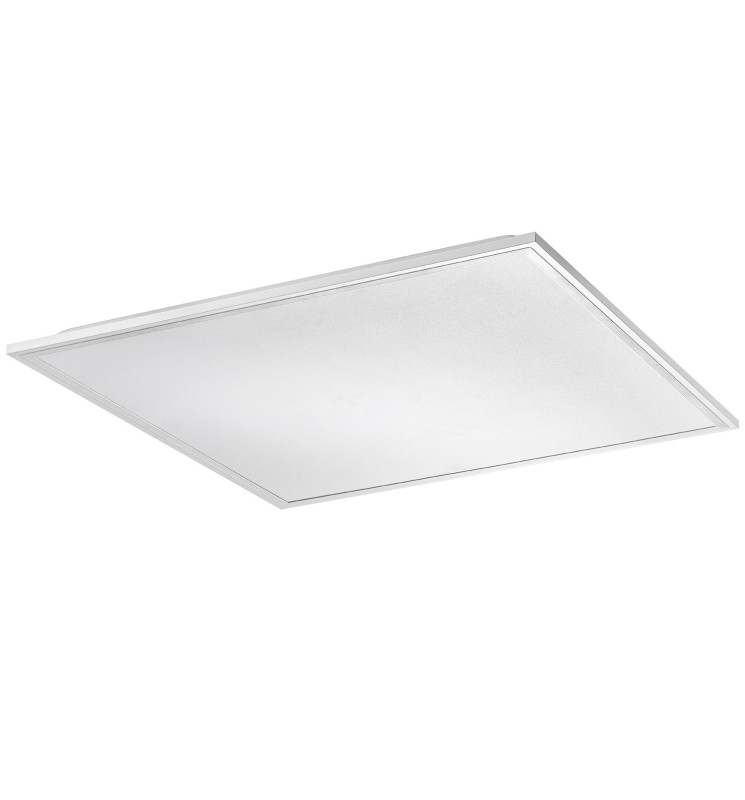

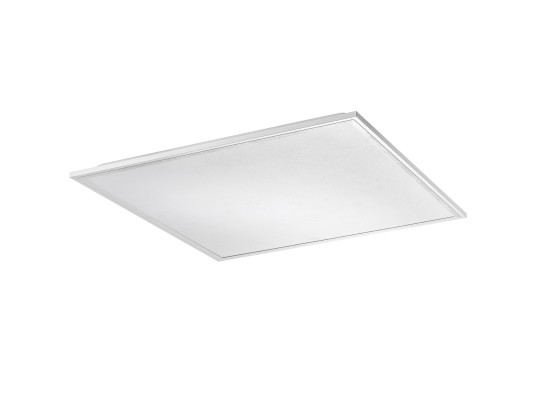

120lm/W micro prismatic led panel. 3 temperature colors to select on the product. 3600 lm in 3000K, 3900 lm in 4000K and 3600 lm in 6000K.
BL04302007
BE-LED

Data sheet

Yes
Yes
IP
IP20
IRC
>80
Dimmable
Non
IK
IK04
Energy efficiency class
D
Warranty (years)
5
Total power (W)
30
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
90
Luminous flux (lm)
3400, 3600, 3500
Color temperature
6500K, 4000K, 3000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 19
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
34
Weight (kg)
2.04
Product color
White
Use temperature range
-25°... +45°C
Connection type
Bornier avec repiquage
IP (value)
20
Body materials
Aluminium
Diffuser materials
PC
Life span duration
L80 à 25° : 50 000 h
Recoverable
Insulation material except driver
Network frequency
50Hz
Initial SDCM
SDCM< 4
