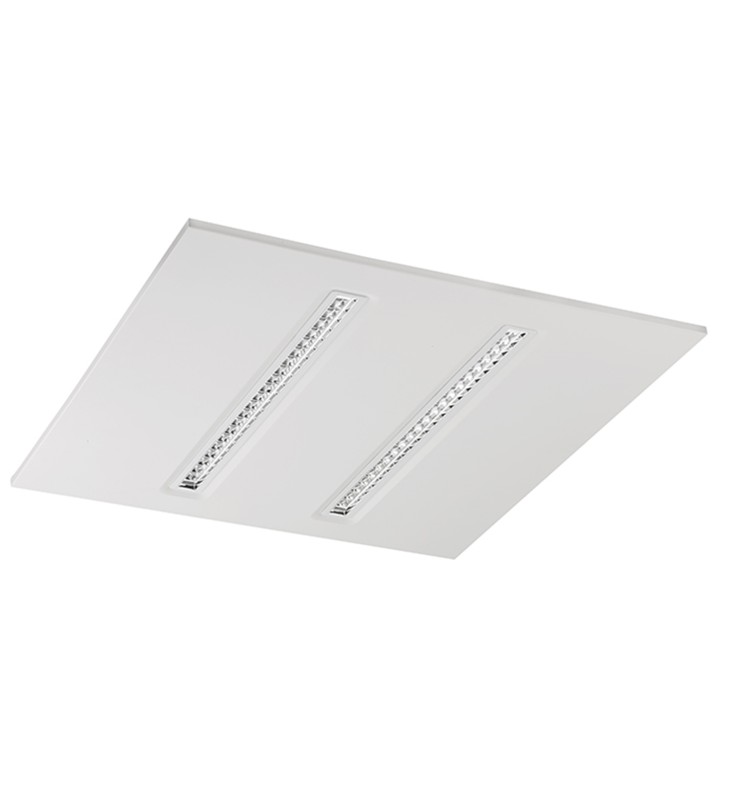

PANEL COMFORT URG16-600X600-24W-IP20-3000K-WHITE

BL04242006
UGR<16 600 x 600 panel with chrome optics. Dali option with suitable driver - low consumption and very good visual comfort, ideal for rooms with demanding or intense visual work. 140lm/W, interchangeable led module.
BL04242006
BE-LED

Data sheet

Yes
IP
IP20
IRC
>80
Dimmable
Yes
IK
IK06
Energy efficiency class
C
Warranty (years)
5
Total power (W)
24
Electric class
III, II with power supply
Power factor
>0.95
Rated voltage
230V
Light beam spread (°)
85
Luminous flux (lm)
3500
Color temperature
3000K
Safety group (EN62778)
RG0
Unified Glare Rating (UGR)
< 16
Driver included
Yes
Including the light source
Yes
Light source type
SMD
Tiltable
Non
Length (mm)
595
Width (mm)
595
Height (mm)
38
Weight (kg)
2.78
Product color
White
Use temperature range
-20... +45°
Connection type
Bornier avec repiquage
IP (value)
20
Body materials
Aluminium, PC
Diffuser materials
PC
Life span duration
L80B10 à 25° : 50 000 h
Recessed depth under BA13 (mm)
40
Recoverable
Insulation material except driver
Dimmable values
Dali, push dim
Network frequency
50Hz
Initial SDCM
SDCM< 3
Max. lamp per B10A circuit breaker
10
Max. lamp per B16A circuit breaker
15
Max. lamp per C16A circuit breaker
20
